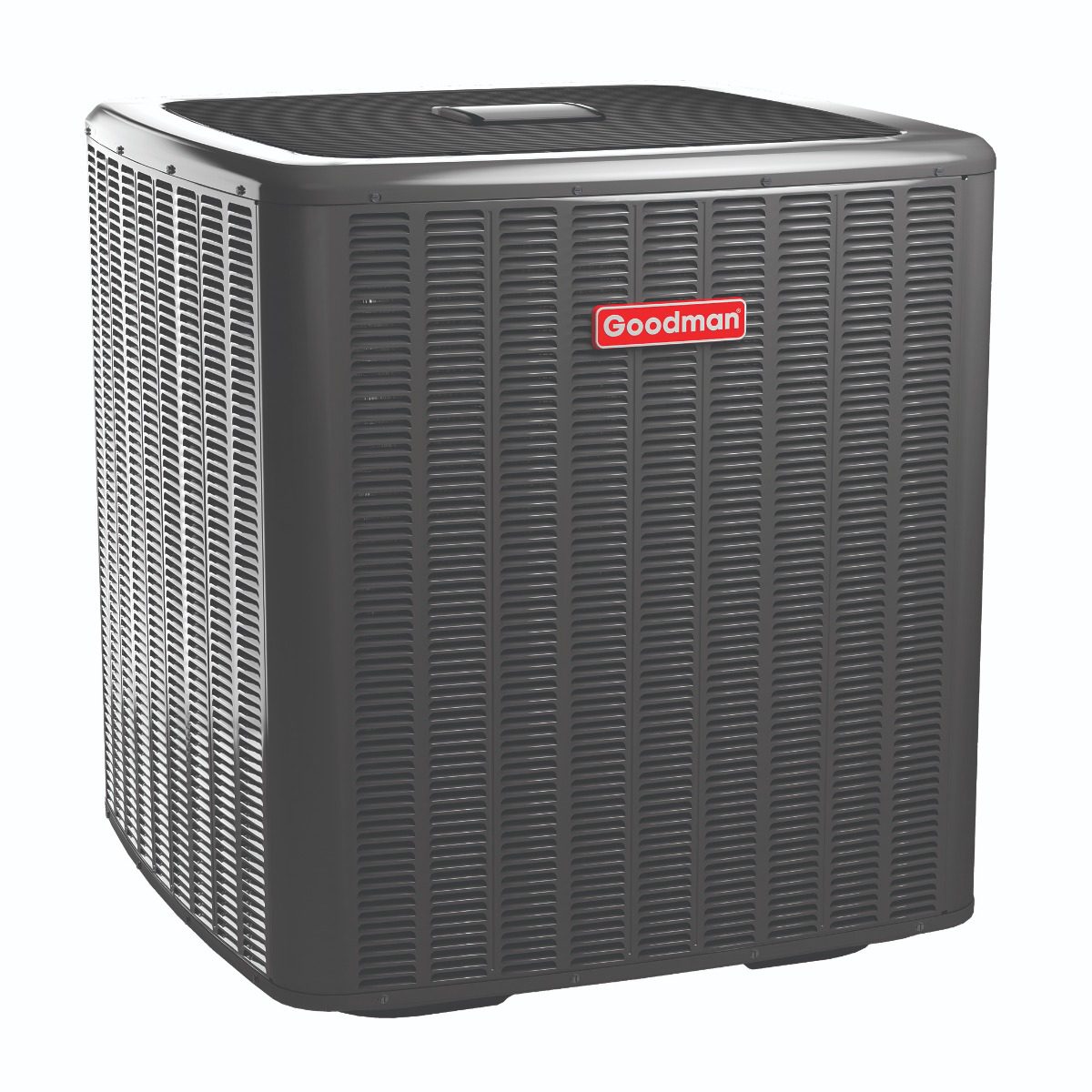

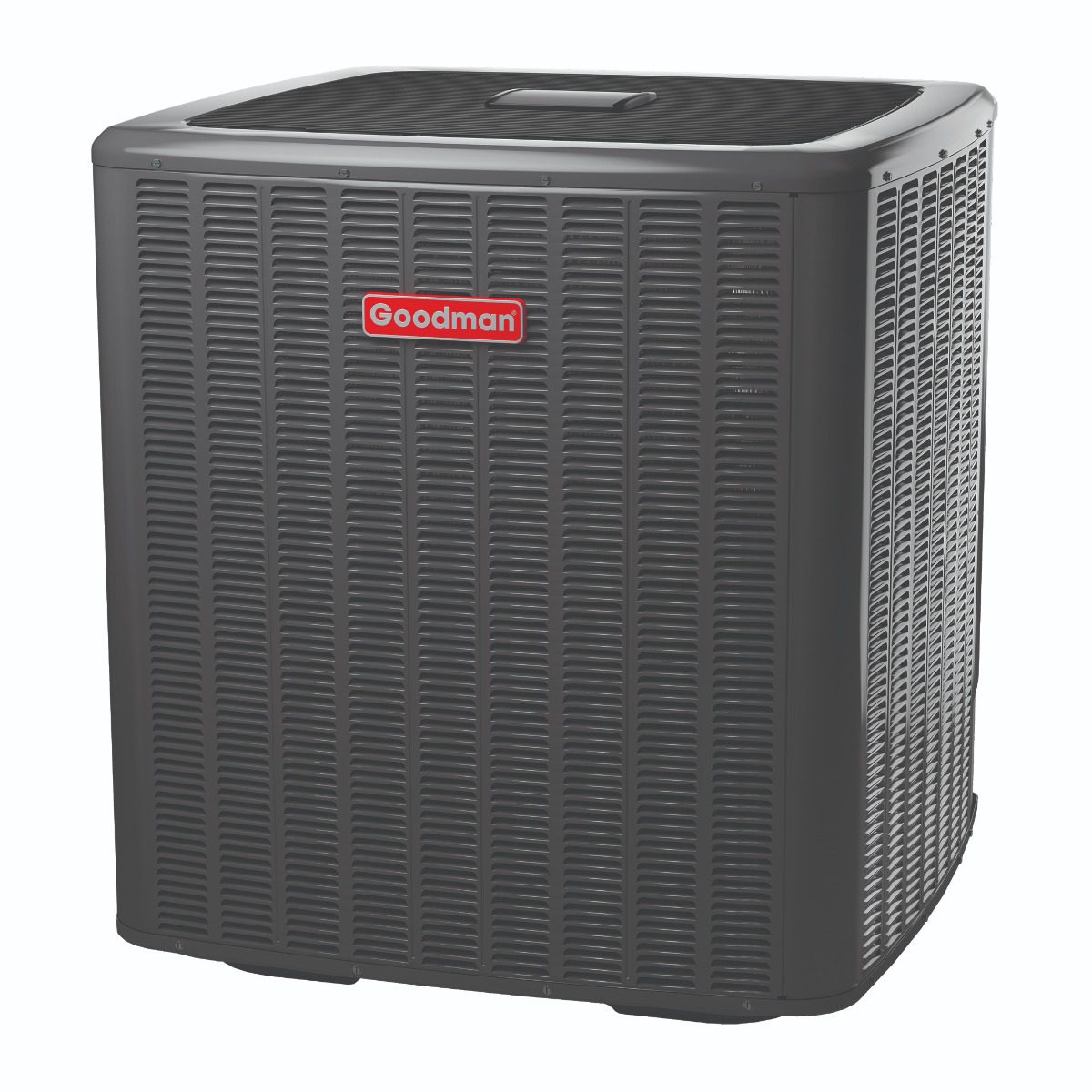

2 Ton 16 SEER Goodman Air Conditioner Condenser GSX160241 R410a
Standard Features
• Energy-efficient compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Copper tube/aluminum fin coil
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed
Cabinet Features
• Heavy-gauge galvanized-steel cabinet with a louvered sound control top
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
(Anchor bracket kits available.)
| GSX160241 | |
| Capacities | |
| Nominal Cooling (BTU/h) | 23,600 |
| SEER | 16 |
| Decibels | 71.5 |
| Compressor | |
| RLA | 13.5 |
| LRA | 58.3 |
| Condenser Fan Motor | |
| Horsepower | 1/6 |
| FLA | 0.95 |
| Refrigeration System | |
| Refrigerant Line Size ¹ | |
| Liquid Line Size (“O.D.) | ⅜” |
| Suction Line Size (“O.D.) | ¾” |
| Refrigerant Connection Size | |
| Liquid Valve Size (“O.D.) | ⅜” |
| Suction Valve Size (“O.D.) | ¾” |
| Valve Type | Sweat |
| Refrigerant Charge | 70 |
| Electrical Data | |
| Voltage-Phase (60 Hz) | 208/230-1 |
| Minimum Circuit Ampacity ² | 17.8 |
| Max. Overcurrent Protection ³ | 30 |
| Min / Max Volts | 197/253 |
| Electrical Conduit Size | ½” or ¾” |
| Equipment Weight (lbs) | 142 |
| Ship Weight (lbs) | 160 |
| ENERGY STAR® Certified | Yes |
