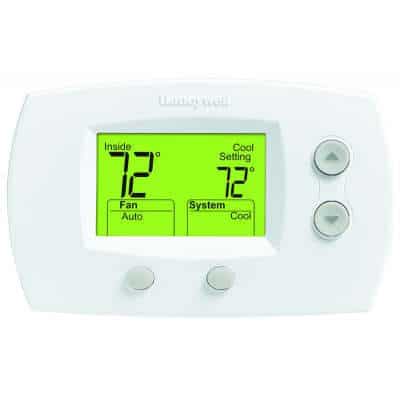

Honeywell TH5220D1003/U Non Programmable Heat Pump Thermostat

Overview
Honeywell’s FocusPRO® 5000 digital thermostat offers the perfect blend of features, performance, energy savings and value. With an easy-to-read digital display, the FocusPRO 5000 prominently displays both room and set temperature.

Features
• Easy-access battery replacement
• Displays available in large or standard screen
• Up to 3H/2C – conventional and heat pump
• Precise comfort control (±1 F) which maintains consistent comfort
• Dual-powered (battery and/or hardwire)
• 5-Year warranty

Product Specifications
Application-Up to 2 Heat/2 Cool Conventional Systems; Up to 2 Heat/1 Cool Heat Pumps
Dimensions (in.)-3 9/16 in. High X 5 13/16 in. Wide X 1 1/2 in. Deep
Dimensions (mm)-91 mm High X 147 mm Wide X 38 mm Deep
Comments-Standard display size 3.75 sq. in.
Item Type-Product
Mounting-Horizontal
Electrical Ratings-20 to 30 Vac or 750 mV
Frequency-50 Hz; 60 Hz
Stages-Up to 2 Heat/2 Cool
Operating Humidity Range (% RH)-5 to 90% RH, non-condensing
Supply Voltage-20 to 30 Vac; 750 mV
Switch Positions (System)-HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Positions (Fan)-AUTO-ON
Power Method-Dual Powered: Battery or Hardwire
Sensor Element-Thermistor
Accuracy (F)-±1 F
Accuracy (C)-± 0.5 C
Color-Premier White®
Switch Type-Relay
Terminal Designations-R, RC, C, W-O/B, G, Y, W2-AUX/E, Y2-L
Display Size-N/A
Changeover-Auto or Manual Selectable
Setting Temperature Range (F)-Heat: 40 F to 90 F; Cool: 50 F to 99 F
Setting Temperature Range (C)-Heat: 4.5 C to 32 C; Cool: 10 C to 37 C
Cycles per Hour-Heating 1-12 CPH; Cooling 1-6 CPH
Cool Current-Y = 0.02 A to 1.0 A running; Y2 = 0.02 A to 1.0 A running
Heat Current-W = 0.02 A to 1.0 A running; W2 (AUX) = 0.02 A to 0.5 A running; E = 0.02 A to 1.0 A running
Fan Current-0.02 A to 0.5 A running
