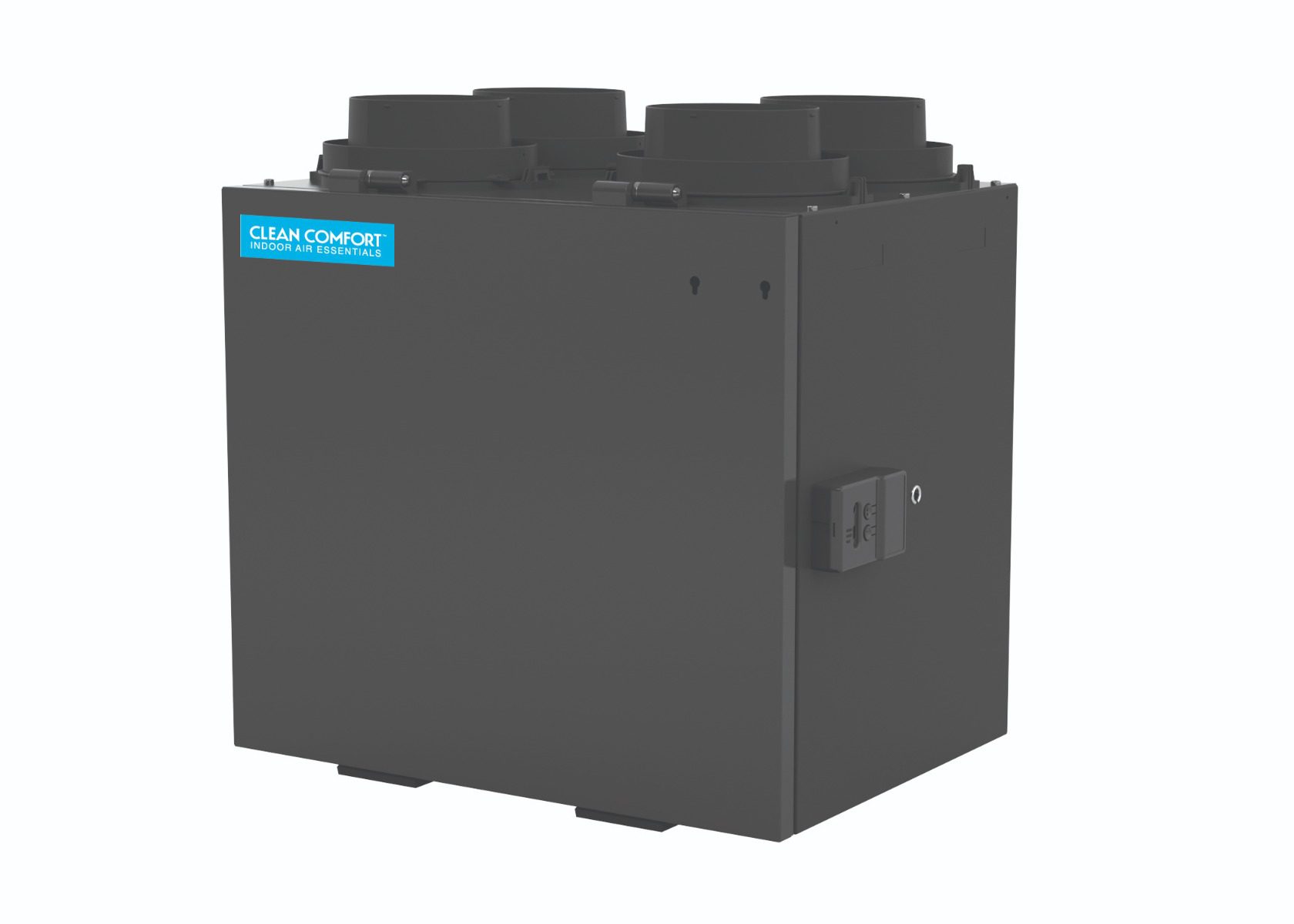

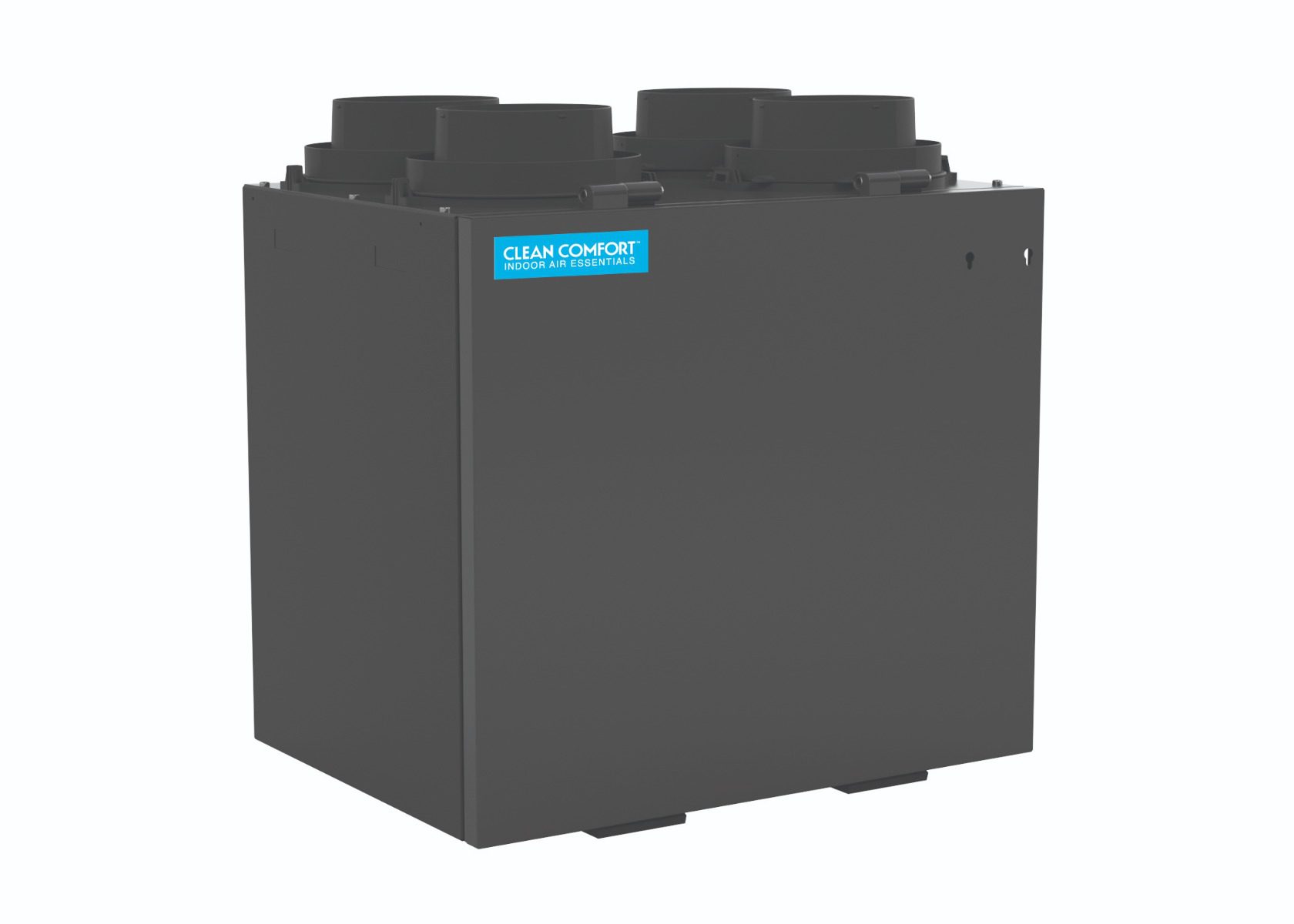

Clean Comfort-30-100 cfm-Energy Recovery Ventilator (ERV)-Top Port Space Saver

Features
• Three operating modes (Intermittent, Continuous and High)
• 100% variable speed
• ISF™ (Insert, Slide and Fix) 5″ (127 mm) oval collar system
• Advanced proportional supply fan shut-down defrost sequence
• Single-person mounting system via wall bracket
• Dual permanently lubricated PSC motors
• Integrated auxiliary furnace interlock relay
• Ventilator can be balanced by adjusting each motor independently; no balancing dampers required
• Connection terminals for optional wall controls
• Wall-mount bracket included
• Integrated balancing pressure taps
• Quiet operation

Energy Recovery Core
• Transfers both sensible and latent heat
• Effective in warm and cold climates
• Water washable

Optional Accessories
• Matrix 2-in-1 high-performance concentric ventilation hood

Certifications and Standards
• HVI Certified
• CSA C439 Standard (Packaged Heat/Energy Recovery Ventilators (HRV/ERV))
• CSA Standard CSA 22.2 NO.113-10 (Fans and ventilators)
• UL Standard 1812 2nd Ed. Ducted Heat/Energy Recovery Ventilators (HRV/ERV)

Specifications VE30100
Cabinet
Dimensions 22″x 19-13⁄16″ x 14-19⁄32″
(559 mm x 503 mm x 371 mm)
Construction 20-gauge galvanized pre-painted steel corrosion-resistant liner: molded expanded Polystyrene
(EPS) Rated UL94 HF-1
Duct Connections Four, 5″ (127 mm) oval ISF double collar system
Airflow Rates 30 CFM (14 L/s) to 100 CFM (47 L/s)
Motors Two PSC variable-speed backward curved
Maximum RPM 3135; 1/11 HP,
Class F, thermally protected
Voltage 120 VAC @ 60 Hz / 1 Phase
Amperage 0.85 A / 66 W
Electronic Circuit output voltage:
Components 5VDC nominal
RoHS compliant
Heat Exchanger dpoint cross-flow (Enthalpic
Polymer Membrane)
Dimensions 10″L x 10″W x 9″D
(254 mm x 254 mm x 229 mm)
Construction Corrugated aluminum layers with
advanced polymer membrane,
Recognized UL94 HB
Defrost type Evacuation; activated automatically
at 23°F (-5°C)
Filters Two (2) Fiberbond washable
9″ x 10″ x 5/8″
(229mm x 254mm x 16 mm)
Drain Connection ½” (12.7 mm)
Actual Weight 32½ lbs (14.7 Kg)
Shipping Weight 40 lbs (18.1 Kg)
Optional Wall Controls
Mechanical VHP-RD1, VHP-TC10 or VHP-DC15
Timer VHP-T3 (20, 40, 60 minutes)
