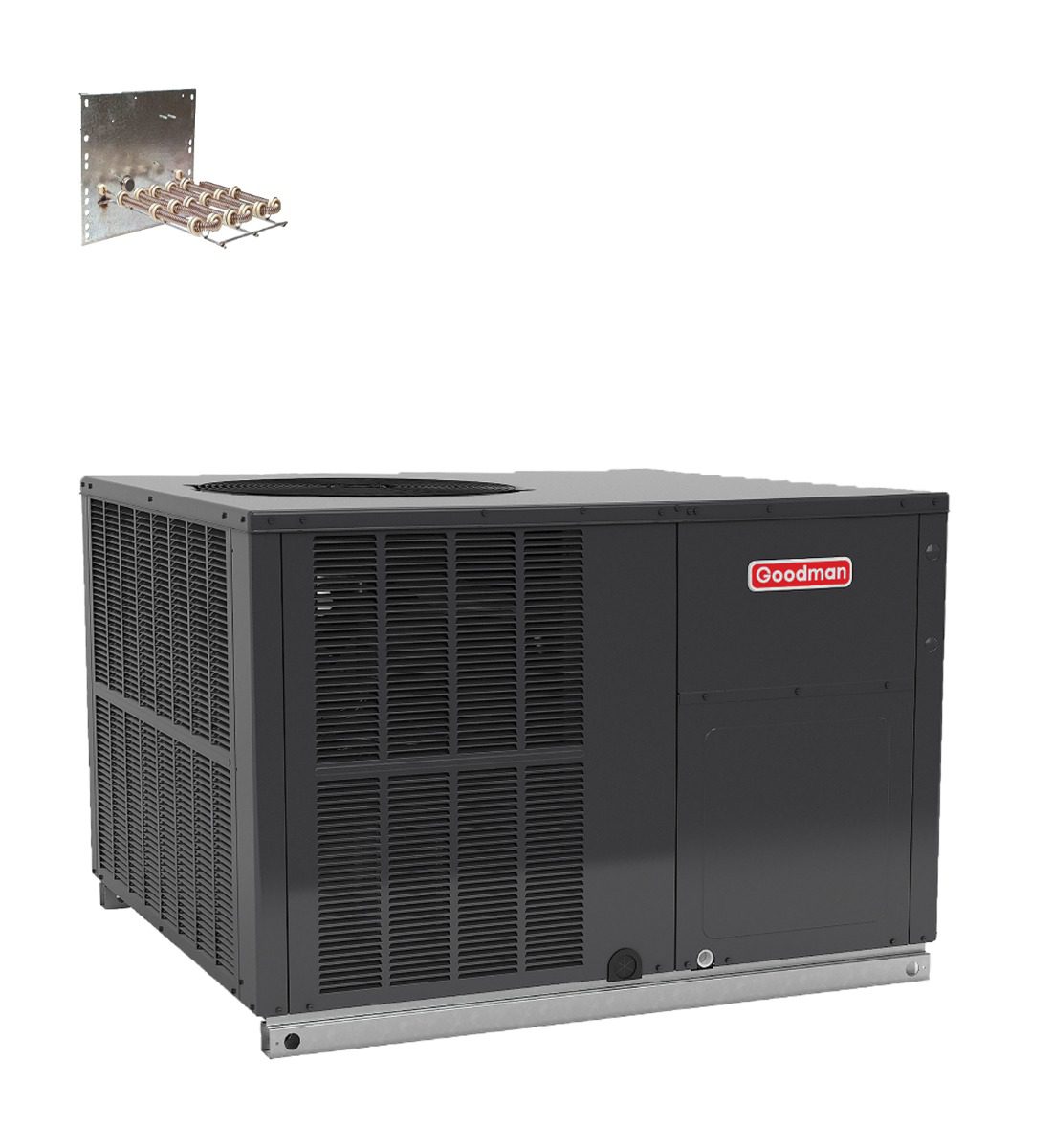

Standard Features
• Energy-efficient scroll compressor
• Multi-speed ECM indoor blower motor
• Convertible airflow: horizontal or downflow
• Copper tube/aluminum fin condenser coil
• All-Aluminum evaporator coil
• Liquid-line filter drier
• 5 kW to 20 kW electric heat kit available as a field-installed option
• AHRI Certified; ETL Listed
Cabinet Features
• Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
• Aluminum foil-facing internal insulation reinforced with fiberglass scrim
• Fully insulated air-handling compartment with convenient access panels
• Louvered condenser coil protection
• Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
• One footprint for all tonnages
Â
| Â | GPH1424M41 |
| Cooling Capacity | Â |
| Total BTU/h | 24,000 |
| Sensible BTU/h | 18,700 |
| SEER / EER | 14/11 |
| Decibels | 76 |
| AHRI #s | 7470164 |
| Heating Capacity | Â |
| BTU/h (47°F) | 23,000 |
| C.O.P (47°F) | 3.6 |
| BTU/h (17°F) | 12,600 |
| C.O.P (17°F) | 2.2 |
| HSPF | 8.0 |
| Evaporator Motor | Â |
| Type | ECM |
| Wheel (D x W) | 10 x 9 |
| Nominal Cooling CFM | 850 |
| FLA / LRA | 4.3 / — |
| No. of Speeds | 5 |
| Horsepower – RPM | ½ – 1,050 |
| Evaporator Coil | Â |
| Face Area (ft²) | 4.55 |
| Rows Deep/ Fin per Inch | 4 / 14 |
| Drain Size (NPT) | ¾” |
| R-410A Refrigerant Charge (oz.) | 128 |
| Condenser Fan / Coil | Â |
| Horsepower – RPM | ¼ – 830 |
| FLA/LRA | 1.5 / 3.0 |
| Fan Diameter / # Fan Blades | 22 / 3 |
| Face Area (ft²) | 12.21 |
| Rows Deep/ Fin per Inch | 2 / 16 |
| Compressor | Â |
| Quantity | 1 |
| Type | Scroll |
| Stage | Single |
| Electrical Data | Â |
| Voltage/ Phase (60 Hz) | 208-230/1 |
| Compressor RLA/ LRA | 12.8 / 58.3 |
| Total Unit Amps | 18.6 |
| Min. Circuit Ampacity¹ | 21.8 |
| Max. Overcurrent Protection² | 30 amps |
| Shipping Weight (lbs) | 380 |
$3,336.00
-
