Standard Features
• Energy-efficient compressor
• Single-speed condenser fan motor
• Factory-installed filter drier
• Copper tube/aluminum fin coil
• Service valves with sweat connections and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed
Cabinet Features
• Heavy-gauge galvanized-steel cabinet with a louvered sound control top
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
| GSX140241 | |
| Capacities Max Cooling (BTU/h) | 24,000 |
| SEER/EER | 14 / 12 |
| Decibels | 74 |
| Compressor | |
| RLA | 7.7 |
| LRA | 38 |
| Condenser Fan Motor | |
| Hp | 1/8 |
| FLA | 0.7 |
| Refrigeration System Refrigerant Line Size ¹ | |
| Liquid Line Size (“O.D.) | ⅜” |
| Suction Line Size (“O.D.) | ¾” |
| Refrigerant Connection Size Liquid Valve Size (“O.D.) | ⅜” |
| Suction Valve Size (“O.D.) ² ³ | ¾” |
| Valve Type | Sweat |
| Charge | 72 |
| Included piston: | 0.057 |
| Electrical Data | |
| Voltage-Phase (60 Hz) | 208/230-1 |
| Minimum Circuit Ampacity ⁴ | 10.3 |
| Max. Overcurrent Protection | 15 amps |
| Min/Max Volts | 197/253 |
| Conduit | ½” or ¾” |
| Equipment Weight Shipping Weight | 126 141 |
Standard Features
• All-Aluminum evaporator coil
• Optimized for use with R-410A refrigerant
• Some models suitable for use with
R-410A or R-22 refrigerant
• CAPT models feature factory-installed thermal expansion valves for cool- ing and heat pump
applications
• Check flowrator for cooling and heat pump applications
• Vertical and horizontal models available
• 21″ depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL listed

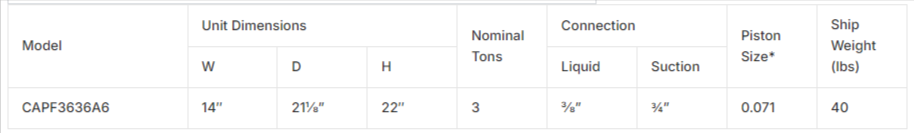

| Model | Unit Dimensions | Nominal Tons | Connection | Piston Size* | Ship Weight (lbs) | ||||
| W | D | H | Liquid | Suction | |||||
| CAPF3636A6 | 14″ | 21⅛” | 22″ | 3 | ⅜” | ¾” | 0.071 | 40 | |
Do you need Goodman HVAC parts near me? Then, you are at the right place! Buy online or call at (762) 435-4822 to get an estimate.
$1,679.00
Out of stock
