Standard Features
• Energy-efficient compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Copper tube/aluminum fin coil
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed
Cabinet Features
• Heavy-gauge galvanized-steel cabinet with a louvered sound control top
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for
hurricane-type winds
(Anchor bracket kits available.)
| GSX160601 | |
| Capacities | |
| Nominal Cooling (BTU/h) | 54,000 |
| SEER | 16 |
| Decibels | 73 |
| Compressor | |
| RLA | 21.4 |
| LRA | 135 |
| Condenser Fan Motor | |
| Horsepower | 1/3 |
| FLA | 2.80 |
| Refrigeration System | |
| Refrigerant Line Size ¹ | |
| Liquid Line Size (“O.D.) | ⅜” |
| Suction Line Size (“O.D.) | ⅞” |
| Refrigerant Connection Size | |
| Liquid Valve Size (“O.D.) | ⅜” |
| Suction Valve Size (“O.D.) | ⅞” |
| Valve Type | Sweat |
| Refrigerant Charge | 237 |
| Electrical Data | |
| Voltage-Phase (60 Hz) | 208/230-1 |
| Minimum Circuit Ampacity ² | 29.6 |
| Max. Overcurrent Protection ³ | 50 |
| Min / Max Volts | 197/253 |
| Electrical Conduit Size | ½” or ¾” |
| Equipment Weight (lbs) | 279 |
| Ship Weight (lbs) | 301 |
| ENERGY STAR® Certified |
Standard Features
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Two-stage gas valve provides quiet, economical heating
• Durable Silicon Nitride igniter
• Quiet two-speed induced draft blower
• Compatible with any single-stage thermostat
• Self-diagnostic control board with constant memory fault code history output to a triple
7-segment display
• Color-coded low-voltage terminals with provisions for
electronic air cleaner
• Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
• Multiple continuous fan speed options offer quiet air circulation
• Auto-Comfort and enhanced dehumidification modes available
• All models comply with California 40 ng/J Low NOx emissions standard
• For installation in California’s South Coast Air Quality Management District (SCAQMD) only:
This furnace does not meet the SCAQMD Rule 1111 14 ng/J NOx emission limit, and thus is subject to a mitigation fee of up to $450. This furnace is not eligible for the SCAQMD Clean Air Furnace Rebate Program:
www.CleanAirFurnaceRebate.com.
Cabinet Features
• Designed for multi-position installation — upflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy to install top venting with optional side venting
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 2%
• Heavy-gauge steel cabinet with durable baked-enamel finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side-return with easy-cut tabs for effortless removal in bottom air-inlet applications
| GMVC961205DN | |
| Heating Data | |
| High Fire Input¹ | 120,000 |
| High Fire Output¹ | 115,200 |
| Low-Fire Steady-State Input¹ | 84,000 |
| Low-Fire Steady-State Output¹ | 80,640 |
| AFUE² | 96 |
| Temperature Rise Range (°F) | 35 – 65 |
| Vent Diameter³ | 2″ – 3″ |
| No. of Burners | 6 |
| Circulator Blower | |
| Available AC @ 0.5″ ESP | 2 – 5 |
| Size (D x W) | 11″ x 11″ |
| Horsepower @ 1075 RPM | 1 |
| Speed | VS ECM |
| Electrical Data | |
| Min. Circuit Ampacity⁴ | 14.4 |
| Max. Overcurrent Device (amps)⁵ | 20 |
| Shipping Weight (lbs) | 156 |

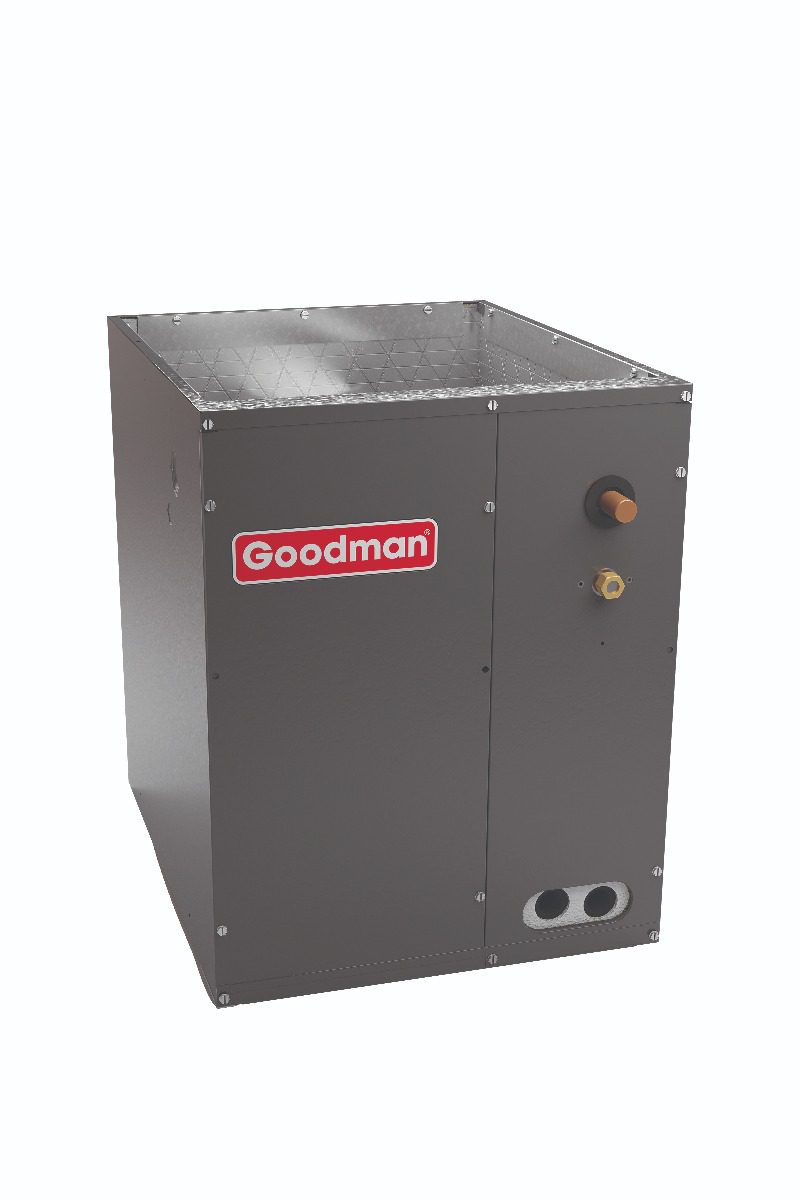

Standard Features
• All-Aluminum evaporator coil
• Optimized for use with R-410A refrigerant
• Some models suitable for use with
R-410A or R-22 refrigerant
• CAPT models feature factory-installed thermal expansion valves for cool- ing and heat pump
applications
• Check flowrator for cooling and heat pump applications
• Vertical and horizontal models available
• 21″ depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL list
| Model | Unit Dimensions | Nominal Tons | Connection | Piston Size* | Ship Weight (lbs) | |||
| W | D | H | Liquid | Suction | ||||
| CAPF4961D6 | 24½” | 21⅛” | 30″ | 4-5 | ⅜” | ⅞” | 0.093 | 76 |
$5,808.00
Out of stock
