(This Product Is Discontinued)
Standard Features Cabinet Features
• High-efficiency scroll compressor
• SmartShift® technology to ensure quiet reliable defrost
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High- and low-pressure switches
• Service valves with sweat connections
and easy access to gauge ports
• Copper tube/enhanced aluminum fin coil
• Fully charged for 15’ of tubing length
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed
Cabinet Features

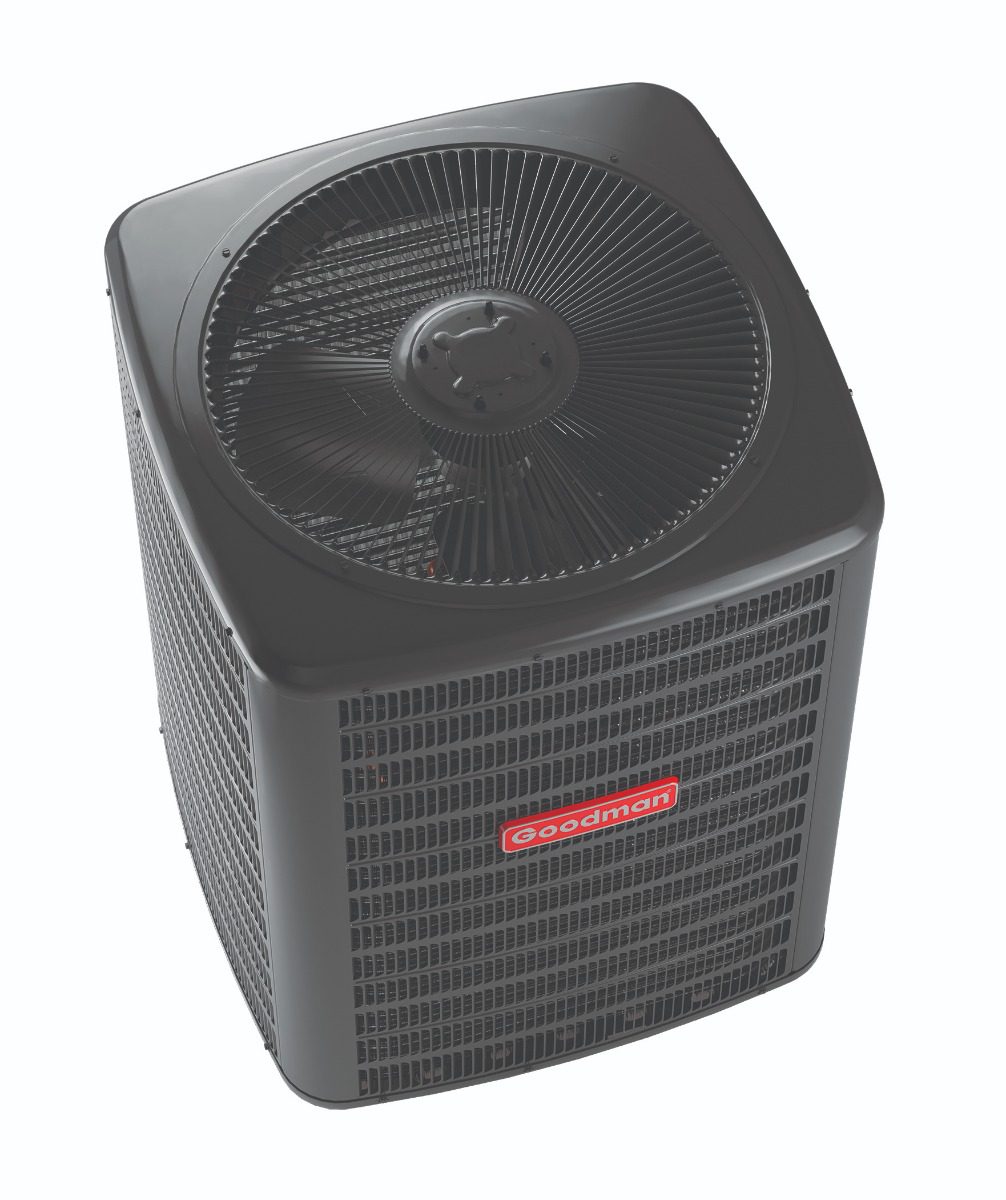

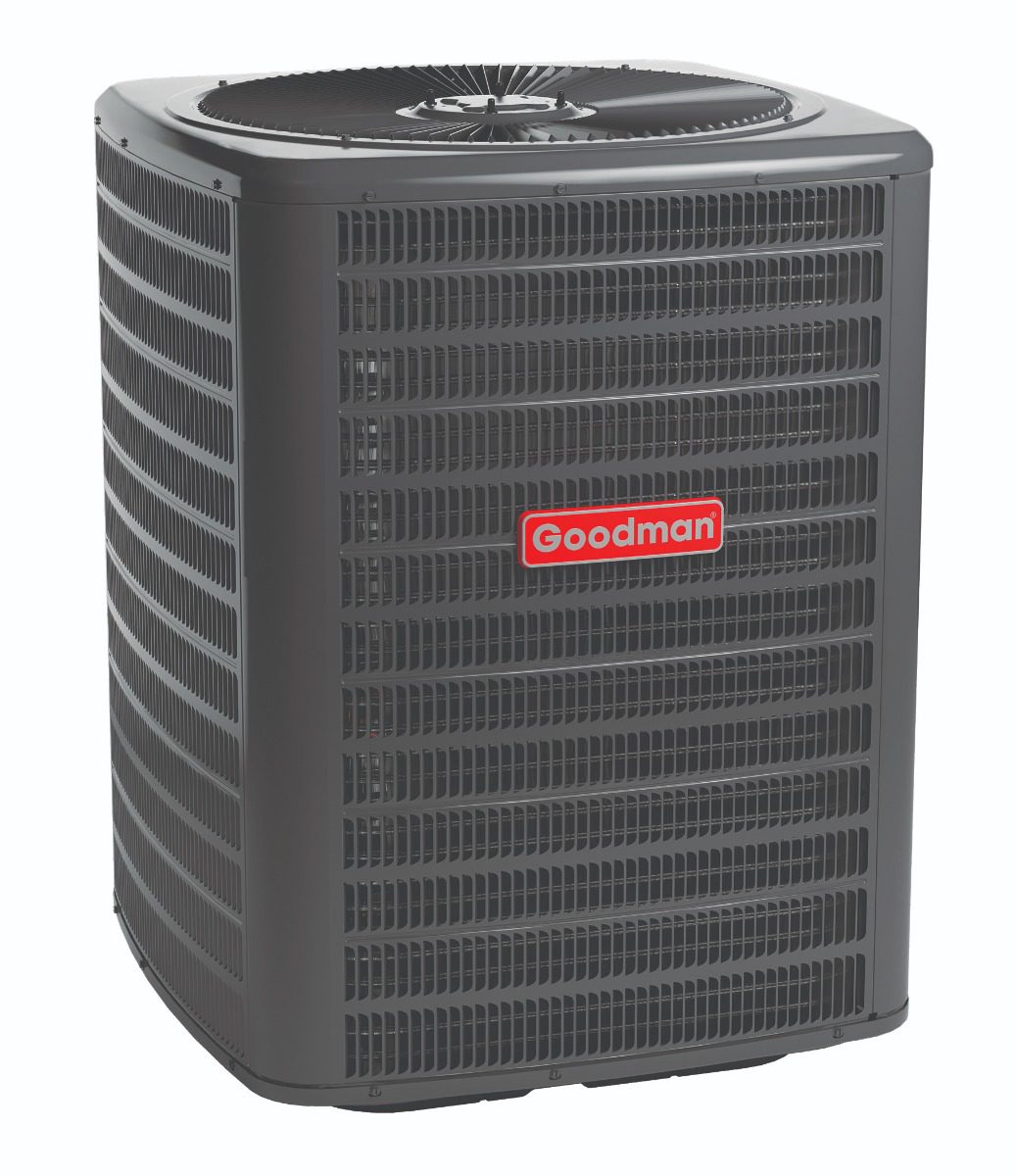

• Goodman® brand sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• Service ports and controls are
accessible while unit is operating
• When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for
hurricane-type winds (Anchor bracket kits available.)
| GSZ140481 | |
| Nominal Capacities | |
| Cooling (BTU/h) | 48,000 |
| Heating (BTU/h) | 48,000 |
| Decibels | 75 |
| Compressor | |
| RLA | 18.5 |
| LRA | 124.0 |
| Type | Scroll |
| Condenser Fan Motor | |
| Horsepower | 1/4 |
| FLA | 1.30 |
| Refrigeration System | |
| Refrigerant Line Size¹ | |
| Liquid Line Size (“O.D.) | ⅜” |
| Suction Line Size (“O.D.) | 1⅛” |
| Refrigerant Connection Size | |
| Liquid Valve Size (“O.D.) | ⅜” |
| Suction Valve Size (“O.D.) | ⅞” |
| Standard Line Set Length (max. feet) | 80 |
| Long Line Set Length (max. feet) ² | |
| Equivalent Length | 250 |
| Linear Length | 200 |
| Vertical Length (outdoor below indoor) | 80 |
| Vertical Length (outdoor above indoor) | 80 |
| Valve Connection Type | Sweat |
| Refrigerant Charge | 157 |
| Electrical Data | |
| Volts/Phase (60 Hz) | 208-230/1 |
| Minimum Circuit Ampacity ³ | 24.4 |
| Max. Overcurrent Protection ⁴ | 40 |
| Min / Max Volts | 197 / 253 |
| Electrical Conduit Size | ½” or ¾” |
| Unit Weights | |
| Equipment Weight (lbs.) | 226 |
| Ship Weight (lbs) | 237 |
| ENERGY STAR® Certified ^ | YES |
Product Features
• Check flowrator for cooling and heat pump applications
• Direct drive, multi-speed PSC blower motor
• All-aluminum evaporator coil
• Coil mounting track for quick repositioning
• Cabinet air leakage less than 2.0% at
1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in
accordance with ASHRAE standard 193
• AHRI certified; ETL listed
• Rigid SmartFrame™ cabinet
• Horizontal or vertical configuration capabilities
• 21″ depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
• Field Installed 3 kW – 25 kW electric heater kits available
| ARUF49D14 | |
| Nominal Ratings | |
| Cooling (Btu/h) | 48,000 |
| Piston Size | 0.080 |
| Blower | |
| Diameter | 10⅝” |
| Width | 10⅝” |
| Coil Connections | |
| Liquid | ⅜” |
| Suction | ⅞” |
| Coil Drain Connect (FPT) | ¾” |
| Electrical Data | |
| Voltage | 208/230 |
| Min Circuit Ampacity | 4/4 |
| Max. Overcurrent Device (Amps) | 15/15 |
| Minimum VAC | 197 |
| Maximum VAC | 253 |
| Blower Motor | |
| Full Load Amps (FLA) | 3.5 |
| Horsepower (HP) | ½ |
| Ship Weight (Lbs.) | 145 |
Product Documents
