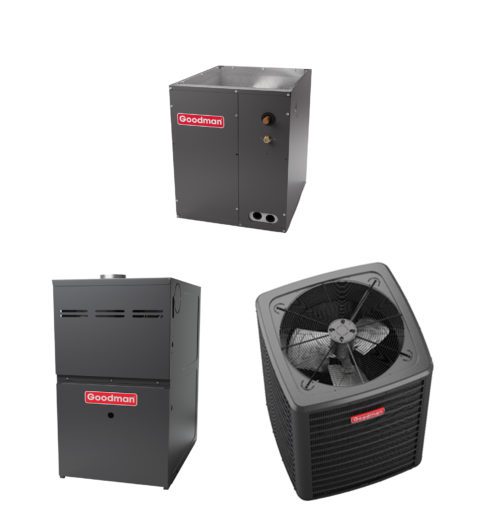

Standard Features
• Energy-efficient compressor
• Single-speed condenser fan motor
• Factory-installed filter drier
• Copper tube/aluminum fin coil
• Service valves with sweat connections
and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed
Cabinet Features
• Heavy-gauge galvanized-steel cabinet with a louvered sound control top
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space
provided for field-installed accessories
• When properly anchored, meets the 2010 Florida
Building Code unit integrity requirements for hurri-
cane-type winds (Anchor bracket kits available.)
| GSX140601 | |
| Capacities | |
| Nom Cool (BTU/h) | 60,000 |
| SEER/EER | 14 / 11.7 |
| Decibels | 75 |
| Compressor | |
| RLA | 25 |
| LRA | 134 |
| Condenser Fan Motor | |
| Hp | 1/4 |
| FLA | 1.3 |
| Refrigeration System | |
| Refrigerant Line Size | |
| Liquid Line Size (“O.D.) | ⅜” |
| Suction Line Size (“O.D.) | 1⅛” |
| Refrigerant Connection Size | |
| Liquid Valve Size (“O.D.) | ⅜” |
| Suction Valve Size (“O.D.) | ⅞” |
| Valve Type | Sweat |
| Charge | 120 |
| Included piston: | 0.088 |
| Electrical Data | |
| Voltage-Phase (60 Hz) | 208/230-1 |
| Minimum Circuit Ampacity ⁴ | 32.6 |
| Max. Overcurrent Protection ⁵ | 50 amps |
| Min/Max Volts | 197/253 |
| Conduit | ½” or ¾” |
| Equipment Weight Shipping Weight | 260 280 |
Standard Features
• Heavy-duty aluminized-steel dual- diameter tubular heat exchanger
• Single-stage gas valve
• Durable Hot-surface igniter
• Quiet, single-speed draft induced
• Self-diagnostic control board
• Color-coded low-voltage terminals
• Multi-speed ECM blower motor
• California Low NOx emissions models available
• Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD)
on or after October 1, 2019.
• AHRI Certified; ETL Listed
Cabinet Features
• Installation:
– GM9S80-upflow, horizontal left or right
– GC9S80- downflow, horizontal left or right
• Convenient left or right connection
for gas and electrical service
• Heavy-gauge steel cabinet with
durable baked-enamel finish
• Foil faced insulated heat exchanger

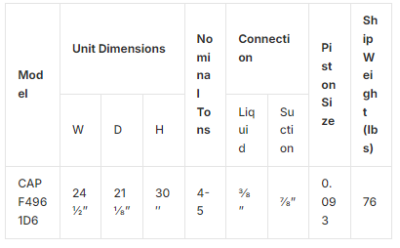

Standard Features
• All-Aluminum evaporator coil
• Optimized for use with R-410A refrigerant
• Some models suitable for use with R-410A or R-22 refrigerant
• CAPT models feature factory-installed thermal expansion valves for cool- ing and heat pump applications
• Check flowrator for cooling and heat pump applications
• Vertical and horizontal models available
• 21″ depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL listed
$4,502.00
Availability: In stock
-
