Packaged heat pumps are a type of heat pump that contain both the indoor and outdoor components in a single unit. These systems do not require the installation of an outdoor unit, making them more compact and easier to install than traditional split-system heat pumps, which have a separate indoor unit and outdoor unit. Packaged heat pump units are also a good choice for those who want to make their home comfortable without the need for increased noise, fans or ductwork.
In heating mode, packaged heat pumps extract waste heat from the air or ground outside and transfer it inside to raise the temperature in the building. This is done using a liquid refrigerant that absorbs heat as it evaporates and releases it as it condenses. In cooling mode, packaged heat pumps draw heat from the indoor air and release it outdoors to effectively lower the temperature in the building. This process is reversed using a component called a reversing valve, and it is done using the same liquid refrigerant that is used in heating mode.
Packaged heat pumps can be used as an alternative to traditional central air systems or gas furnaces, providing both heating and cooling in a single system with increased efficiency. They are a good choice for those who want a single system for both heating and cooling and are looking for a more sustainable and energy-efficient solution. Packaged heat pumps are a good option for those who want a single system for both heating and cooling. They are particularly effective in warmer climates and during the heating season, when temperatures are high and traditional heating systems, such as a gas furnace, may not be needed as frequently.
Standard Features
• Energy-efficient scroll compressor
• Multi-speed ECM indoor blower motor
• Quiet horizontal discharge
• All-aluminum evaporator coil
• Copper tube/aluminum fin condenser coil
• Totally enclosed, permanently lubricated condenser fan motor
• Fully charged system

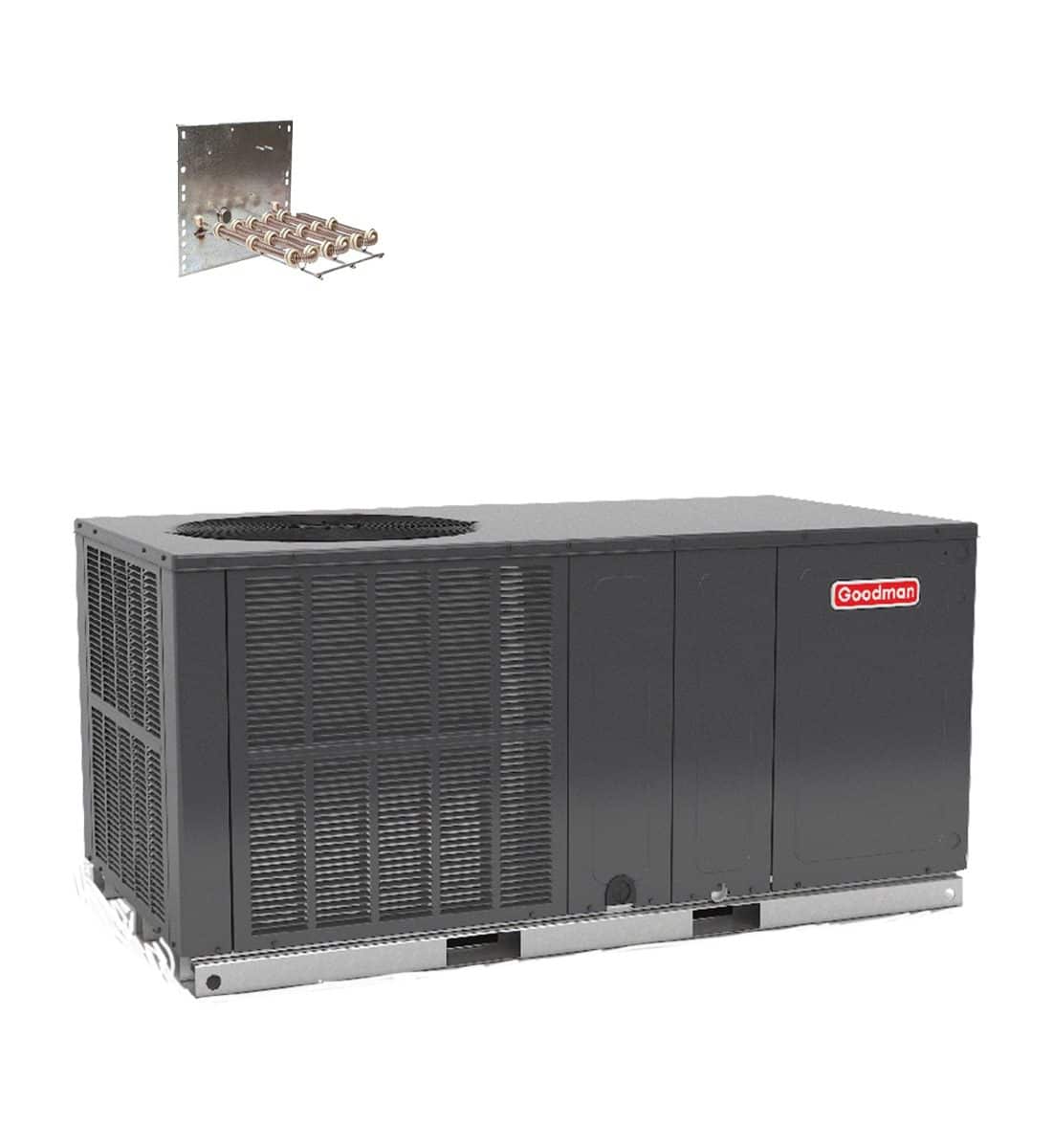

• Electric heat kit available as a field-installed option
• AHRI certified; ETL listed
Cabinet Features
• Heavy-gauge galvanized-steel cabinet with architectural gray powder-paint finish
• Aluminum foil-facing internal insulation reinforced with fiberglass scrim
• Fully insulated blower compartment with convenient access panels
• Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
• Louvered condenser coil protection
• One footprint for all tonnages
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

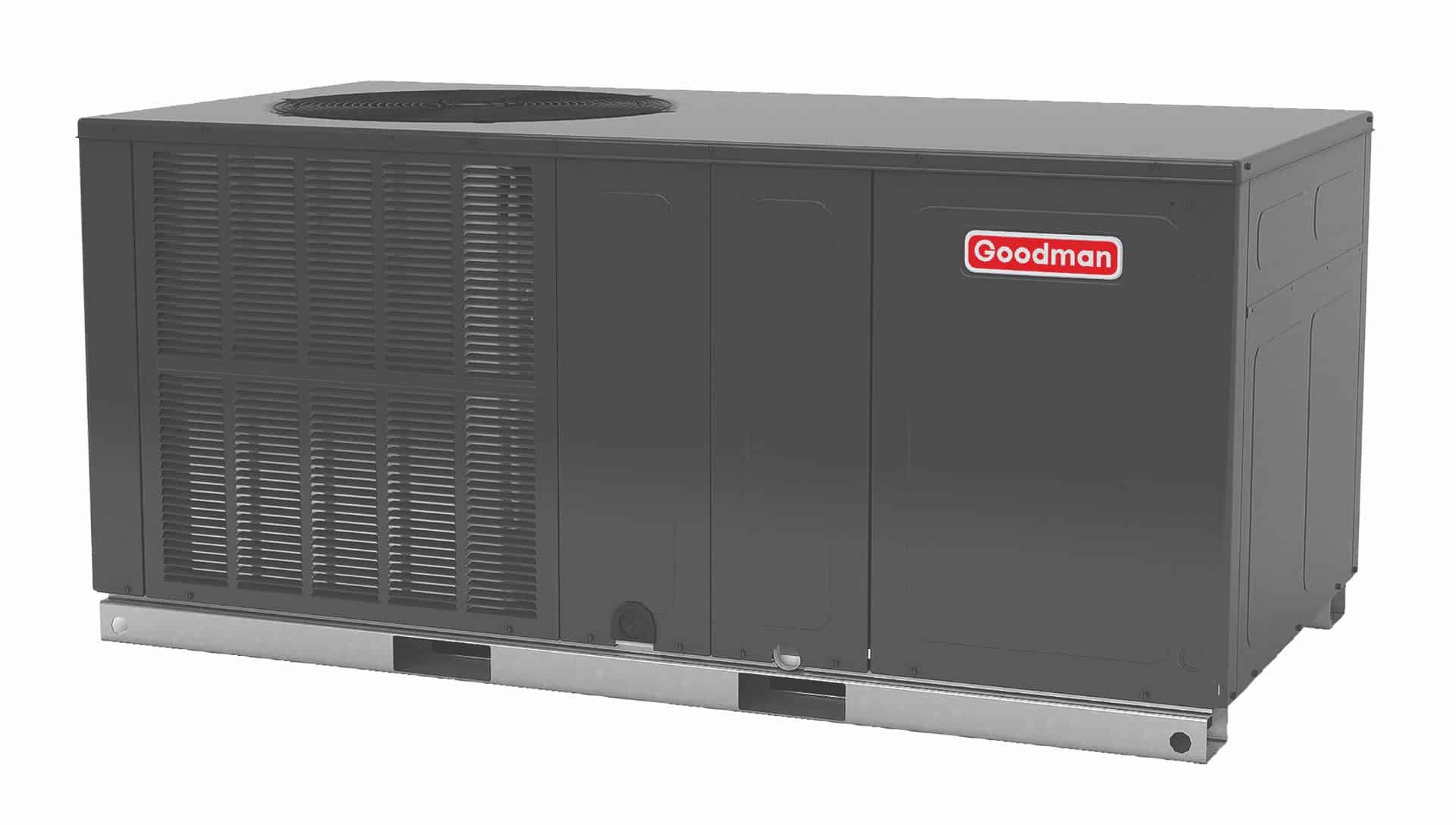

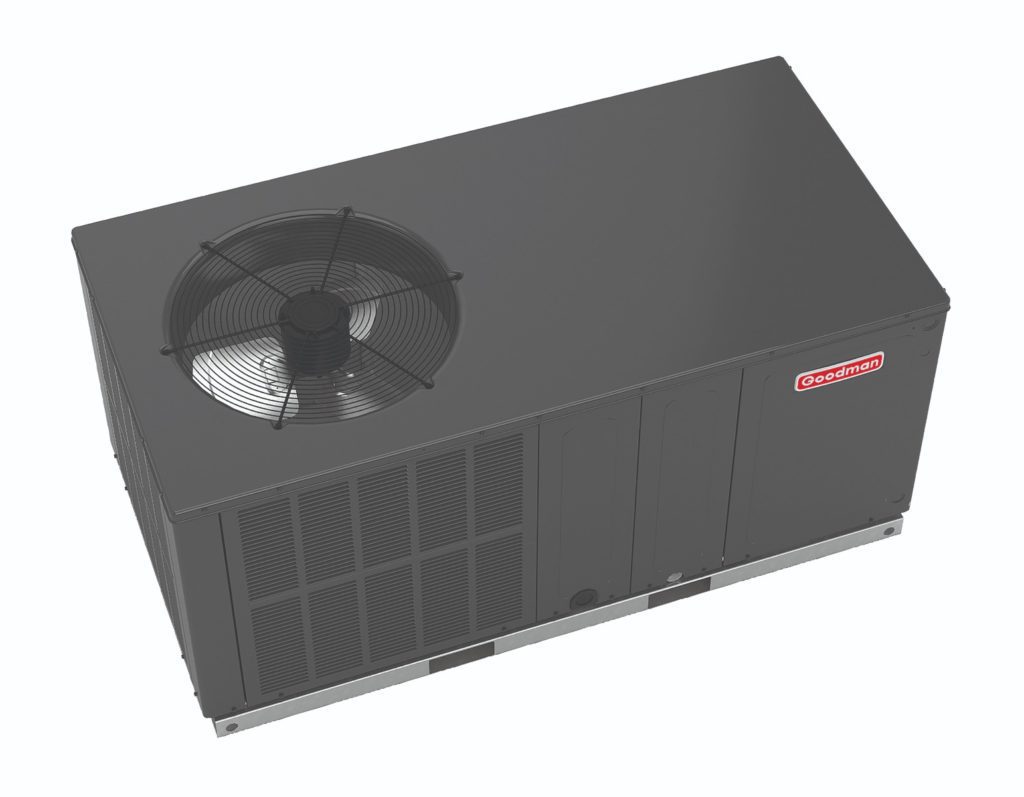

GPHH33641
| Model | GPHH33641 |
|---|---|
| Cooling Capacity | |
| Total BTU/h | 35,200 |
| Sensible BTU/h | 27,632 |
| SEER2/EER2 | 13.4 / 10.6 |
| AHRI Numbers | 208842406 |
| Heating Capacity | |
| BTU/h (47°F) | 32,200 |
| C.O.P. (47°F) | 3.70 |
| BTU/h (17°F) | 19,400 |
| C.O.P. (17°F) | 2.34 |
| HSPF2 | 6.70 |
| Evaporator Motor | |
| Type | ECM |
| Wheel (D x W) | 10 x 8 |
| Cooling CFM3 | 1,200 |
| Fan-Only CFM | 958 |
| No. of Speeds | 5 |
| Horsepower – RPM | 1/2 – 1050 |
| Evaporator Coil | |
| Face Area (ft2) | 6.23 |
| Rows Deep | 3 |
| Fins per Inch | 14 |
| Metering Device Type | Piston |
| Drain Size (NPT) | ¾” |
| Refrigerant Charge (oz.) | 116 |
| Condenser Fan | |
| Horsepower – RPM | 1/4 – 830 |
| Fan Diameter | 22 |
| # Fan Blades | 4 |
| Condenser Coil | |
| Face Area (ft2) | 17.02 |
| Rows Deep | 1 |
| Fins per Inch | 24 |
| Metering Device Type | Piston |
| Compressor | |
| Quantity | 1 |
| Type | Scroll |
| Stage | Single |
| Sound Power dBA | 78 |
| Electrical Data | |
| Compressor RLA/LRA | 16.7 / 79 |
| Voltage/Phase (60 Hz) | 208-230 / 1 |
| Indoor Blower FLA | 3.8 |
| Outdoor Fan FLA | 1.3 |
| M.C.A.1 | 26 |
| M.O.P.2 | 40 |
| Operating Weight (lbs) | 375 |
| Ship Weight (lbs) | 387 |
Product Documents
Product Documents
$3,763.00
-
