(This Product Is Discontinued)

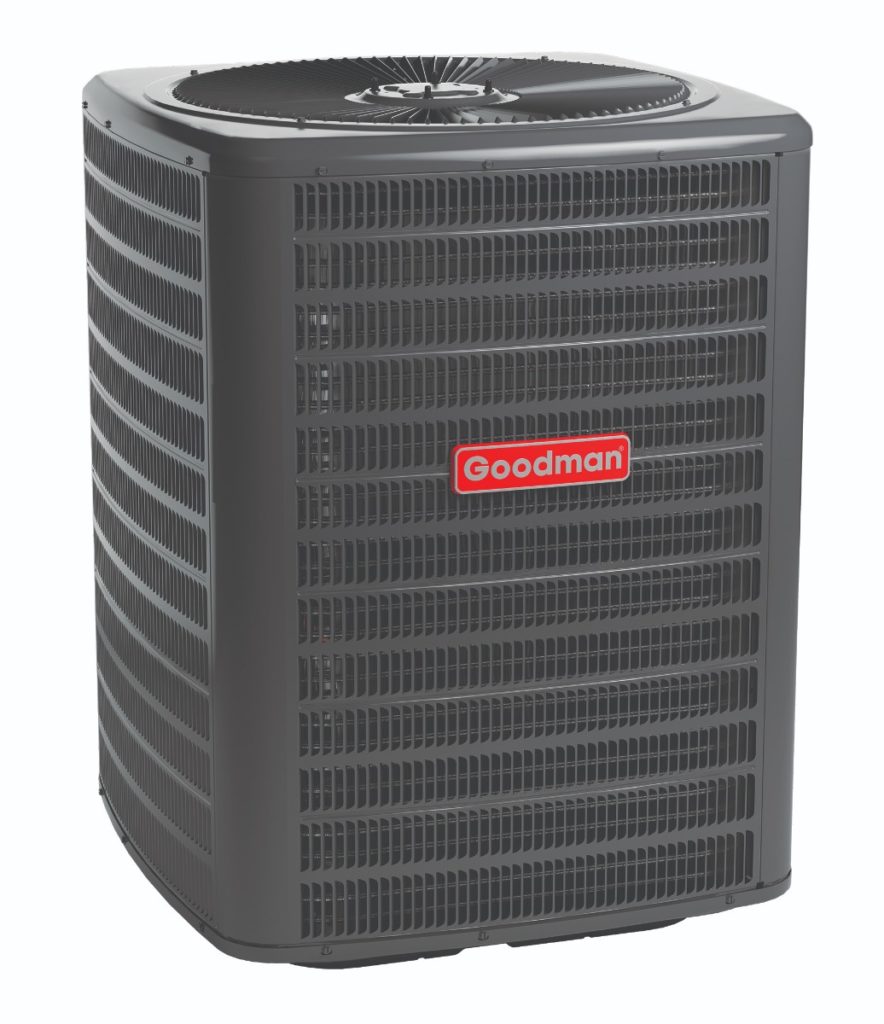

3.5 Ton 14 SEER Goodman HEAT PUMP Condenser GSZ14042 R410a
Standard Features
• Energy-efficient compressor
• Single-speed condenser fan motor
• Factory-installed filter drier
• Copper tube/aluminum fin coil
• Service valves with sweat connections and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed
Cabinet Features
• Heavy-gauge galvanized-steel cabinet with a louvered sound control top
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane- type winds (Anchor bracket kits available.)
| GSZ140421 | |
| Nominal Capacities | |
| Cooling (BTU/h) | 42,000 |
| Heating (BTU/h) | 42,000 |
| Decibels | 75 |
| Compressor | |
| RLA | 16.7 |
| LRA | 109.0 |
| Type | Scroll |
| Condenser Fan Motor | |
| Horsepower | 1/6 |
| FLA | 1.1 |
| Refrigeration System | |
| Refrigerant Line Size¹ | |
| Liquid Line Size (“O.D.) | ⅜” |
| Suction Line Size (“O.D.) | 1⅛” |
| Refrigerant Connection Size | |
| Liquid Valve Size (“O.D.) | ⅜” |
| Suction Valve Size (“O.D.) | ⅞” |
| Standard Line Set Length (max. feet) | 80 |
| Long Line Set Length (max. feet) ² | |
| Equivalent Length | 250 |
| Linear Length | 200 |
| Vertical Length (outdoor below indoor) | 80 |
| Vertical Length (outdoor above indoor) | 80 |
| Valve Connection Type | Sweat |
| Refrigerant Charge | 153 |
| Electrical Data | |
| Volts/Phase (60 Hz) | 208-230/1 |
| Minimum Circuit Ampacity ³ | 22.0 |
| Max. Overcurrent Protection ⁴ | 35 |
| Min / Max Volts | 197 / 253 |
| Electrical Conduit Size | ½” or ¾” |
| Unit Weights | |
| Equipment Weight (lbs.) | 191 |
| Ship Weight (lbs) | 207 |
| ENERGY STAR® Certified ^ |
Product Documents
Product Documents
$2,381.00
Out of stock
