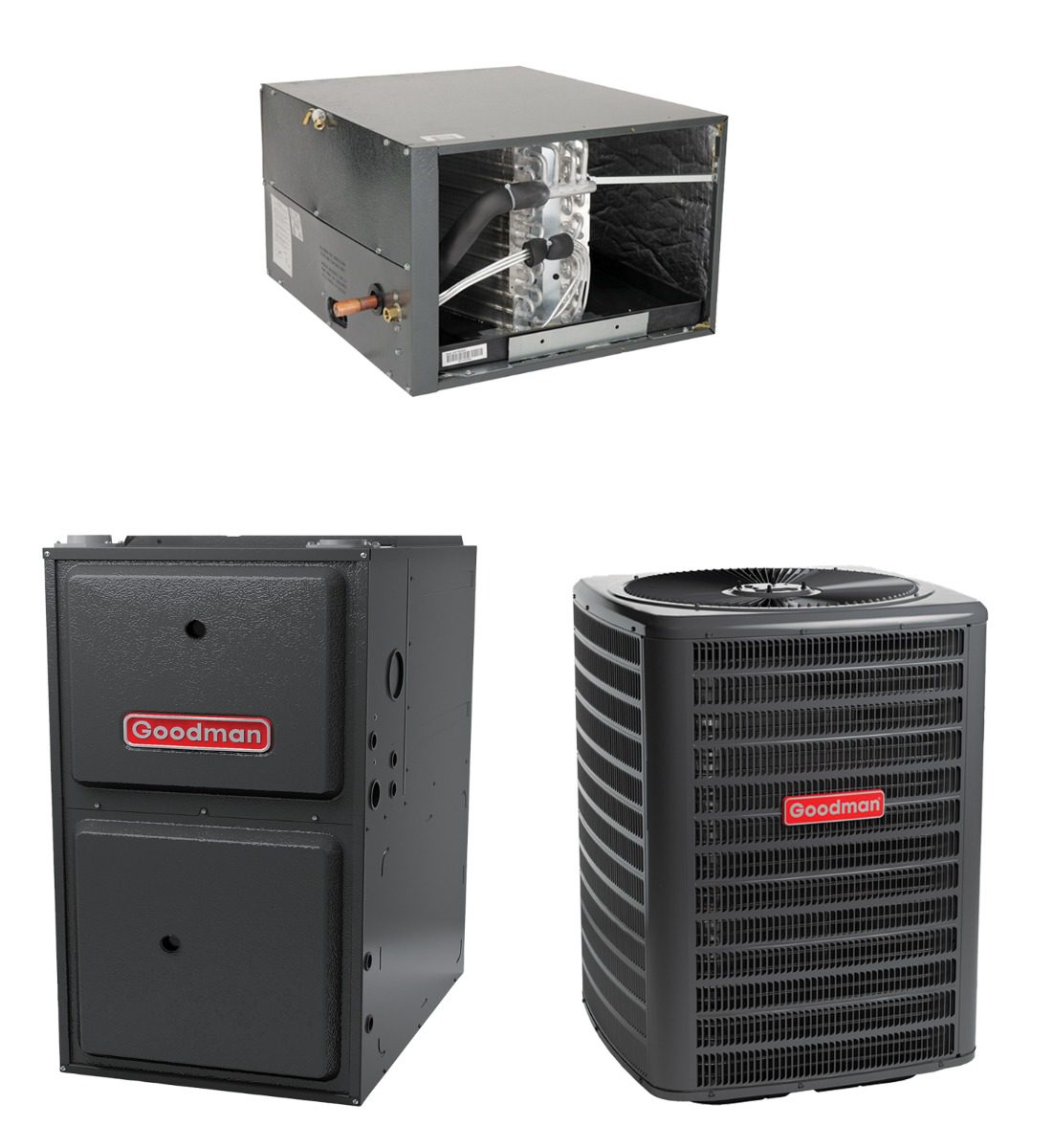

2.5 Ton Goodman 14.5 SEER R410A 96% AFUE 80,000 BTU Two-Stage Variable Speed Horizontal Gas Furnace Split System

Storewide Sale

Add To Cart To See Savings

Standard Features

• Energy-efficient compressor

• Single-speed condenser fan motor

• Factory-installed filter drier

• Copper tube/aluminum fin coil

• Service valves with sweat connections

and easy-access gauge ports

• Contactor with lug connection

• Ground lug connection

• AHRI Certified; ETL Listed

Cabinet Features

• Heavy-gauge galvanized-steel cabinet with a louvered sound control top

• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval

• Steel louver coil guard

• Top and side maintenance access

• Single-panel access to controls with space

provided for field-installed accessories

• When properly anchored, meets the 2010 Florida

Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

GSX140301
Capacities Max Cooling (BTU/h) 30,000
SEER/EER 14 / 12.0
Decibels 74
Compressor
RLA 12.8
LRA 64
Condenser Fan Motor
Hp 1/6
FLA 0.95
Refrigeration System Refrigerant Line Size ¹
 Liquid Line Size (“O.D.)  ⅜"
Suction Line Size (“O.D.) ¾"
Refrigerant Connection Size Liquid Valve Size (“O.D.)   ⅜"
Suction Valve Size (“O.D.) ² ³ ¾"
Valve Type Sweat
Charge 80
Included piston: 0.065
Electrical Data
Voltage-Phase (60 Hz) 208/230-1
 Minimum Circuit Ampacity ⁴ 17
Max. Overcurrent Protection 25 amps
Min/Max Volts 197/253
Conduit ½" or ¾"
Equipment Weight Shipping Weight 162 180
Standard Features • All-Aluminum evaporator coil • Optimized for use with R-410A refrigerant • Some models suitable for use with R-410A or R-22 refrigerant • CAPT models feature factory-installed thermal expansion valves for cool- ing and heat pump applications • Check flowrator for cooling and heat pump applications • Vertical and horizontal models available • 21″ depth for easier attic access • Foil-faced insulation covers the internal casing to reduce cabinet condensation • Galvanized, leather grain-embossed finish • Rust resistant, thermoplastic drain pans featuring a low water-retention design • DecaBDE-free thermoplastic drain pan with secondary drain connections • UV-resistant drain pan • AHRI certified; ETL listed

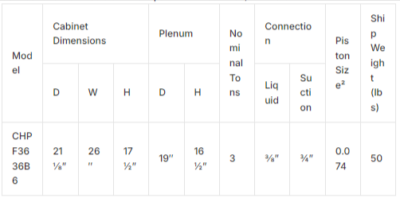

Model Cabinet Dimensions Plenum Nominal Tons Connection Piston Size² Ship Weight (lbs)
D W H D H Liquid Suction
CHPF3636B6 21⅛" 26" 17½" 19" 16½" 3 ⅜" ¾" 0.074 50
Ton Goodman SEER RA AFUE BTU Two Stage Variable Speed Horizontal Gas Furnace Split System HVAC Warehouse

Standard Features

• Integrated communicating ComfortBridge™ Technology

• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet
application

• Heavy-duty aluminized-steel tubular heat exchanger

• Stainless-steel secondary heat exchanger

• Two-stage gas valve provides quiet, economical heating

• Durable Silicon Nitride igniter

• Quiet two-speed induced draft blower

• Compatible with any single-stage thermostat

• Self-diagnostic control board with constant memory fault code history output to a triple
7-segment display

• Color-coded low-voltage terminals with provisions for

electronic air cleaner

• Efficient and quiet variable-speed airflow system gently ramps up or down according to heating
or cooling demand

• Multiple continuous fan speed options offer quiet air circulation

• Auto-Comfort and enhanced dehumidification modes available

• All models comply with California 40 ng/J Low NOx emissions standard

• For installation in California’s South Coast Air Quality Management District (SCAQMD) only:
This furnace does not meet the SCAQMD Rule 1111 14 ng/J NOx emission limit, and thus is subject to
a mitigation fee of up to

$450. This furnace is not eligible for the SCAQMD Clean Air Furnace Rebate Program:
www.CleanAirFurnaceRebate.com.

Cabinet Features

• Designed for multi-position installation — upflow, horizontal left or right

• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)

• Easy to install top venting with optional side venting

• Convenient left or right connection for gas and electrical service

• Cabinet air leakage (QLeak) ≤ 2%

• Heavy-gauge steel cabinet with durable baked-enamel finish

• Fully insulated heat exchanger and blower section

• Airtight solid bottom or side-return with easy-cut tabs for effortless removal in bottom
air-inlet applications

GMVC960803BN
Heating Data
High Fire Input¹ 80,000
High Fire Output¹ 76,800
Low-Fire Steady-State Input¹ 56,000
Low-Fire Steady-State Output¹ 53,760
AFUE² 96
Temperature Rise Range (°F) 35 - 65
Vent Diameter³ 2" - 3"
No. of Burners 4
Circulator Blower
Available AC @ 0.5" ESP 1.5 - 3
Size  (D x W) 11" x 8"
Horsepower @ 1075 RPM ½
Speed VS ECM
Electrical Data
Min. Circuit Ampacity⁴ 7.8
Max. Overcurrent Device (amps)⁵ 15
Shipping Weight (lbs) 120
