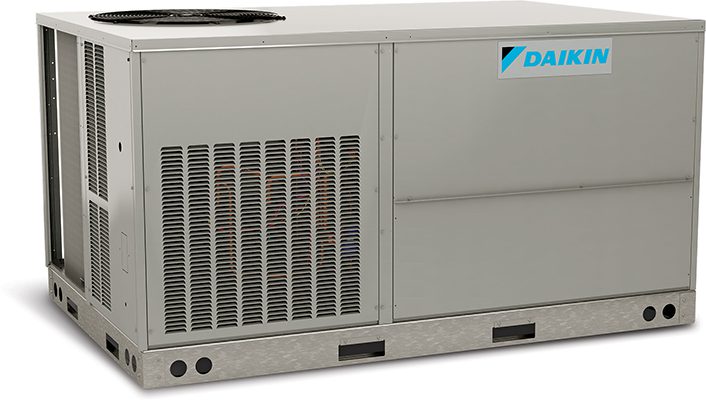

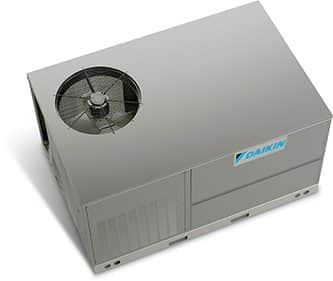

â– Standard Features
• Patented tubular heat exchanger
• High-efficiency scroll compressor
• High and low-pressure switches
• Copper tube / aluminum fin coils
• Contactor with lugs
• High-capacity, steel-cased filter drier
• 24-volt terminal strip
• Convertible airflow orientation
• Easy to service
• Built-in filter rack with standard 2″ filters
• Bottom utility entry

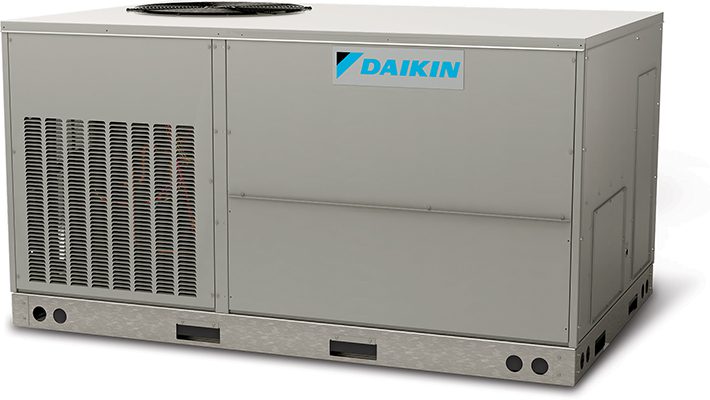

â– Cabinet Features
• Heavy-gauge, galvanized-steel cabinet
with UV-resistant powder-paint finish
• Full Perimeter Rail
• Sloped drain pan
• Complies with California Low NOx emissions standards
• 3-5 Tons with single speed blower motor
units meet the performance specified in
Table 6.8.1-1 of ASHRAE Standard 90.1-2013
• For installation in California’s South Coast Air Quality
Management District (SCAQMD) only: This furnace
does not meet the SCAQMD Rule 1111 14 ng/J NOx
emission limit, and thus is subject to a mitigation
fee of up to $450. This furnace is not eligible for
the SCAQMD Clean Air Furnace Rebate
Program: www.CleanAirFurnaceRebate.com.
• AHRI Certified; ETL Listed
| Â | DSG0360453DXXX |
| Cooling Capacity | Â |
| Total BTU/h | 36,000 |
| Sensible BTU/h | 26,640 |
| SEER / EER | 14 / 12 |
| Decibels | 78 |
| AHRI Reference #s | 9967134 |
| Heating Capacity | Â |
| High Input / Output BTU/h | 46 / 36.8 |
| Low Input / Output BTU/h | —- |
| Thermal Efficiency (T.E.) | 80 |
| Annual Fuel Utilization Efficiency (AFUE) | —- |
| Temperature Rise Range (°F) Hi / Low | 25-55 |
| No. of Burners | 2 |
| Evaporator Motor / Coil | Â |
| Motor Type | Direct Drive |
| Indoor Nominal CFM | 1,250 |
| Motor Speed Tap (Cooling) | Low Speed |
| Indoor Motor FLA (Cooling) | 2.46 |
| Horsepower- RPM | 1/3- 910 |
| Piston Size (Cooling) | 0.070 |
| Filter Size (“) | (4) 14″ x 20″ x 2″ |
| Drain Size (NPT) | ¾” |
| R-410A Refrigerant Charge Cir #1 (oz.) | 105 |
| Evaporator Coil Face Area (ft²) | 7.0 |
| Rows Deep / Fins per Inch | 4 / 16 |
| Belt Drive Evap Fan Data | Â |
| # of Wheels (D x W) | —- |
| Motor Sheave | —- |
| Blower Sheave / Belt | —- |
| Condenser Fan / Coil | Â |
| Quantity of Condenser Fan Motors | 1 |
| Horsepower- RPM | ¼- 1,075 |
| Fan Diameter/ # Fan Blades | 22 / 4 |
| Outdoor Nominal CFM | 3,800 |
| Face Area (ft²) | 17.1 |
| Rows Deep/ Fins per Inch | 1 / 24 |
| Compressor Quantity / Type/ Stage Compressor RLA / LRA | 1 / Scroll / Single 10.4 / 73.0 |
| Electrical Data | Â |
| Voltage-Phase-Frequency | 208/230-3-60 |
| Indoor Blower HP / FLA | 1/3 / 2.46 |
| Max. External Static | 0.5″ |
| Outdoor Fan HP / FLA | ¼ / 1.4 |
| Min. Circuit Ampacity¹ | 16.9 / 16.9 |
| Max. Overcurrent Protection (amps)² | 25 / 25 |
| Power Supply Conduit Hole | 1.125″ |
| Low-Voltage Conduit Hole | ½” |
| Operating Weight (lbs) | 565 |
| Ship Weight (lbs) | 590 |
$2,938.00
Out of stock
